SAE-1006 Steel Wire Rod

Steel grade G10060 (SAE 1006) - low carbon material from which wire rod and round wire are produced in riots or cut rods. Standart: ASTM A510M. Standard specification for general requirements for carbon steel wire rod and round wire. Classification: Low-carbon steel.

Classification :

Wire Rod

+8619953178298

sun@ruixingmetal.com

E-mail

SAE-1006 Steel Wire Rod Description

SAE-1006 Wire Rod Specifications
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)	Nominal Weight (kg/m)	Permissible out – of Roundness(mm)
5.5	-/+ 0.3	0.238	0.186	0.48
6.0	-/+ 0.3	0.283	0.222
6.5	-/+ 0.3	0.332	0.260
7.0	-/+ 0.4	0.385	0.302	0.64
(*)8.0	-/+ 0.4	0.503	0.395
(**)10.0	-/+ 0.4	0.785	0.617
(**)12.0	-/+ 0.4	1.131	0.888
(**)14.0	-/+ 0.4	1.539	1.208
(**)16.0	-/+ 0.5	2.011	1.578	0.80

SAE-1006 Wire Rod Chemical Composition
Grade	C% (max)	Mn%	Si% (max)	S% (max)	P% (max)	Cr% (max)	Ni% (max)	Cu% (max)
SAE 1006	0.08	0.30-0.40	0.08	0.025	0.020	0.10	0.10	0.15

Scope of Application

Steel wire is widely used in the manufacture of many wire products.

Factory Appearance

Company's products: stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coated, coiled materials, seamless pipes, welded pipes, square pipes, torsion pipes, round bars, angle steels, channel steels, I-beams , Hexagonal steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel.

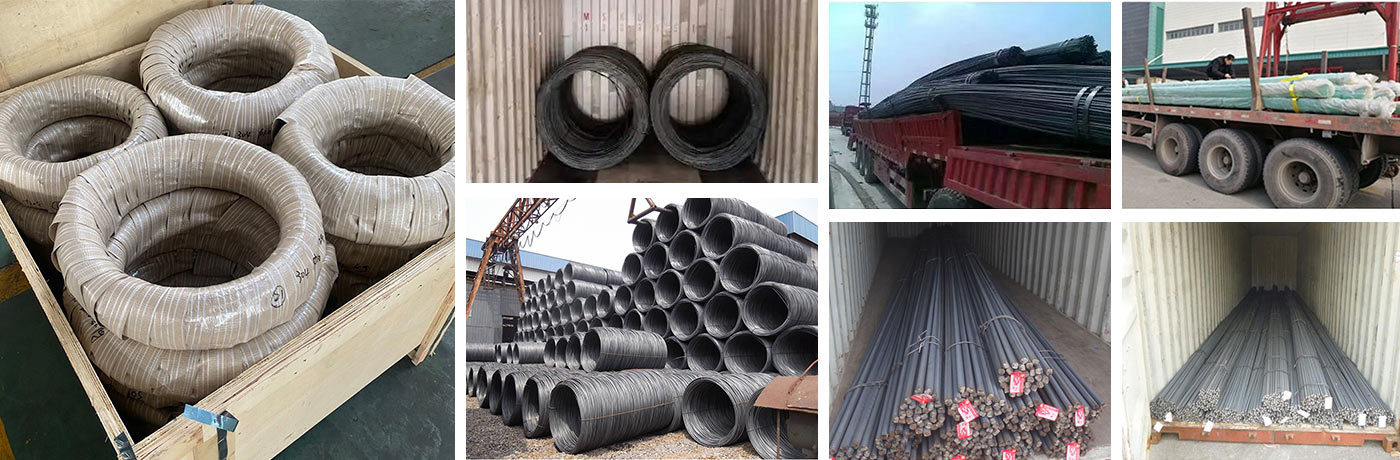

Packing and shipping

We can provide
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.

We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.

Application Areas

Steel is widely used in manufacturing industries such as construction, automobiles, machinery, electrical equipment and ships, aviation, railways, highway transportation, bridges and steel structure buildings, transportation and other industries.

Customer visit

FAQ

Q1:Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3:It's my first time to import steel products, can you help me with it?

A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What about product prices information?

A:Prices various according to periodic price changes of raw materials.

Q5:What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
